Power Router Series

The Wind and solar energy storage and charging router charging station is a super charging station used for electric vehicle energy replenishment. It is directly powered by 10kV high voltage, absorbs wind and solar energy directly, and is equipped with energy storage devices.

Home > Power Router Series

Product Advantages

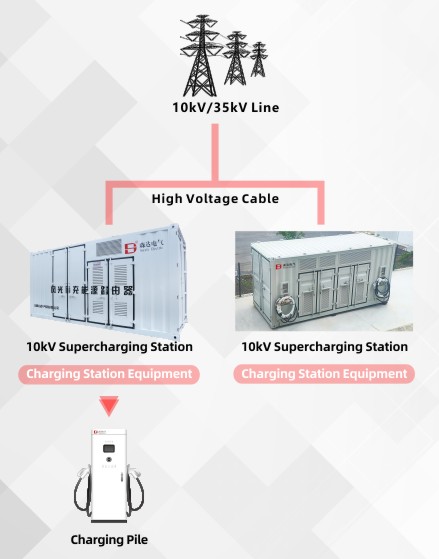

High Voltage Direct Input

Compact design, simplified topology, direct high-voltage connection, reduced three-level AC/DC power conversion, maximum output power of the power station is 1.8MW.

Safe and Efficient

Power station power frequency conversion loss is less than 5%, conversion efficiency is higher than 95%, low harmonic, no resonance risk, high power factor. Adopting advanced direct flexible technology, without the need for compensation system, the system has a lifespan of 15 years. It adopts functional module integration, N+1 fault-tolerant technology, and a professional monitoring and management platform.

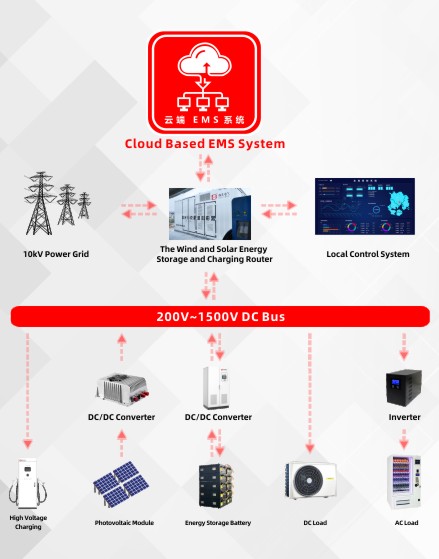

Multi Energy

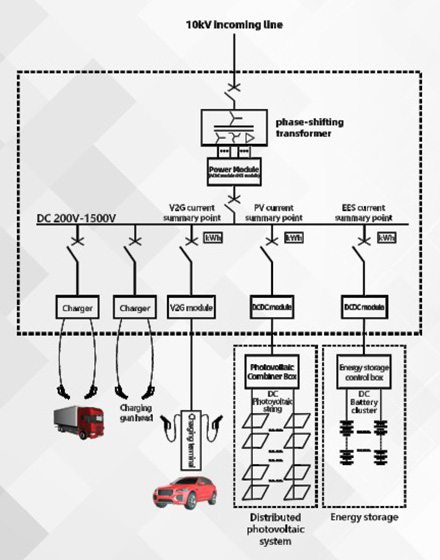

Voltage platform DC 200V-1500V DC bus, bi-directional reversible, equipped with energy storage and photovoltaic interfaces, convenient for expanding wind solar energy storage with multiple complementary energy sources. Adopting DC side grid connection is more conducive to precise regulation of source network load storage, and fully solves uncertain factors such as intermittency and volatility of new energy.

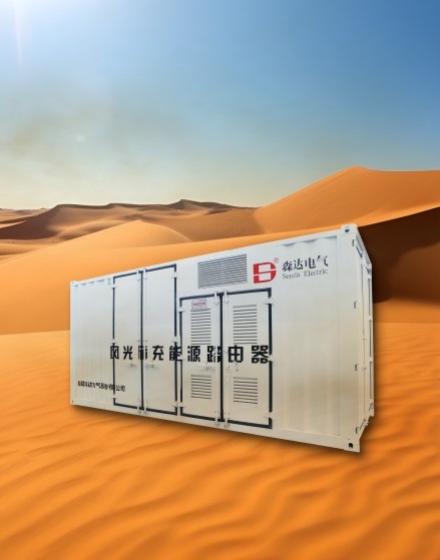

Reliable Protection

Fully enclosed, maintenance free, pre packaged container design, dustproof, moisture-proof, salt alkali resistant, etc., capable of high-pressure flushing of sediment and dust on the outer shell; Especially suitable for environments with high dust and pollution.

Rapid Deployment

Integrated design, prefabricated production, convenient mobility, quick deployment, short construction period, 95% pre installed in the factory, saving about 2/3 of land area and reducing investment costs.

Application Scenario

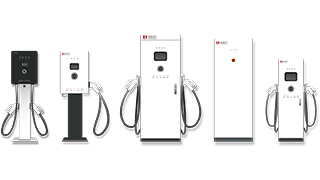

Private cars, taxis, trucks and other public charging

Bus, logistics, sanitation and other special charging

Super charging of all kinds of special vehicles in mines, docks and ports

Wind and Solar Energy Storage and Charging Router Product Series

Wind and Solar Energy Storage and Charging Router Product Series

Product Parameters
Product Model		SEER-Y-630kW SEER-F-630kW	SEER-Y-1200kW SEER-F-1200kW
Basic Parameters	Rated Power	630kW	1200kW
	Number of Vehicle Charging Gun	3~15	6~30
	Output Voltage	DC200-1500V
	Maximum Output Current	250A(Forced Air Cooling) / 600A(Liquid Cooling)
	Vehicle Charging Gun Length	5/6/10m
	Input Voltage	AC10kV±7%
	Frequency Range	50 Hz
	Phase Line	3F+PE
	*Size WDH*	6058(W)×2538(D)×2896(H)
	Weight	15t
	Accuracy	0.5 level
Functional Design	Man-machine Interface	7-inch color touch screen
	Charging Operation	Swipe card and scan code
	Communication Methods	RS-485; Eehernet; WiFi
	Power Allocation	Equal Distribution/Dual Vehicle Charging Gun
	BMS Auxiliary Source	DC12V/24V
	Installation Method	Mobile hoisting
	Current Limiting Protection	≥110%
	Voltage Stabilization Accuracy	≤±1%
	Stabilized Current Precision	≤±0.5%
	Ripple Factor	≤±0.5%
	Efficiency	≥96%
	Power Factor	≥0.98
	THDI	≤3%@ the full load
	Whole Station Loss	≤5%@ the full load
Environmental Indicators	Altitude	≤3000m
	Ambient Temperature	-25~45℃
	Working Humidity	5%~95%（No condensation）
	Heat Dissipation Control	Forced Air Cooling
	Protection Grade	IP54
	Noise Control	≤55dB
Function Selection	1. Photovoltaic DC bus connection 2. DC bus connection of energy storage batteries 3. AC power supply 380V AV/50Hz optional output
Notes	1. In fast charging applications, energy storage and charging router support dual gun charging 2. Liquid cooled single gun with a maximum output of 600A, dual gun charging with 250A output each
